CRITICAL INFRASTRUCTURE PROTECTION
Physical Anti-Drone Defense for Critical Assets
Project-engineered polymer and stainless-steel netting systems for power, aviation, industrial and high-security sites.
- Passive, continuous protection without signal interference
- Solutions matched to threat profile, span and impact conditions
- Permanent and rapidly deployable configurations available
Manufacturing Since 1986 • Project-Specific Engineering • Global Delivery Support
Drone Safety Defense Net
Engineered Polymer Barrier System
- 24/7 Continuous Defense: Reliable, round-the-clock passive airspace protection for sensitive zones.
- Non-Conductive: Synthetic nets are non-metallic and do not interfere with radar, radio or power equipment.
- Flexible Deployment: Lightweight structure designed for both permanent and temporary no-fly zone perimeters.
- Material & Weaving: High-strength polyester, nylon, or polypropylene featuring low-drag knotless or knotted options.
Protective Steel Rope Net
High-Tensile Kinetic Mitigation System
- Fundamentally Different Resilience: Engineered specifically to protect critical assets from large, heavy, and high-speed UAV threats.
- Kinetic Energy Management: High-tensile stainless or galvanized steel rope mesh that manages higher impact energy by controlled deflection.
- Severe Environment Tolerance: Built with premium stainless or galvanized materials for extreme durability.
- Heavy-Duty Specs: Wire sizes and mesh openings customized per project.
Targeted Deployment Scenarios
Engineered netting systems built for high-risk zones, mission-critical infrastructure, and high-value asset protection.

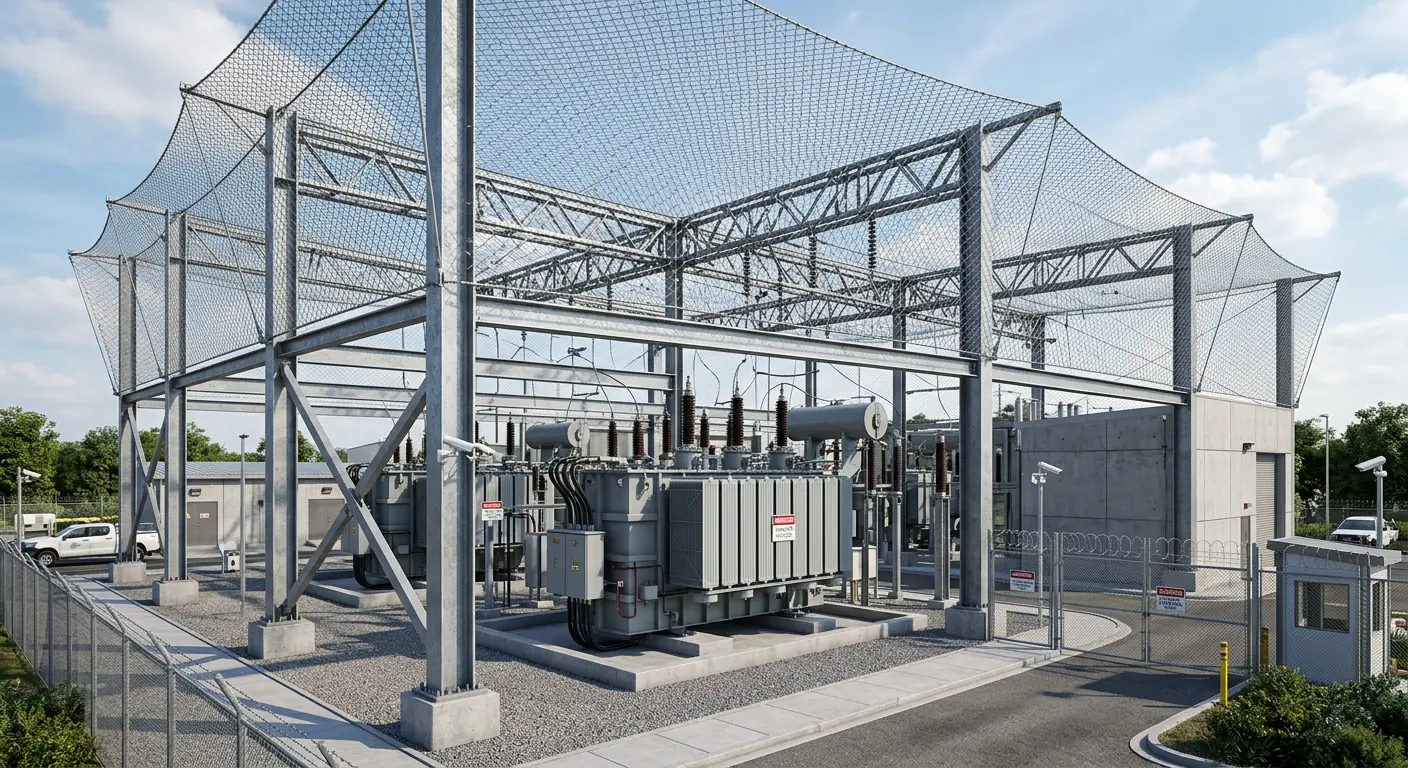

Power Grids & Critical Substations
Real-world Need: Protecting vital transformer blocks and control hubs from low-altitude unauthorized kinetic impacts.
Deploying heavy-duty Stainless steel wire rope nets with project-specific openings. A flexible overhead net on an engineered cable structure that manages impact energy by controlled deflection, with stand-off from transformers and control equipment. Metallic nets near RF equipment are reviewed during design.

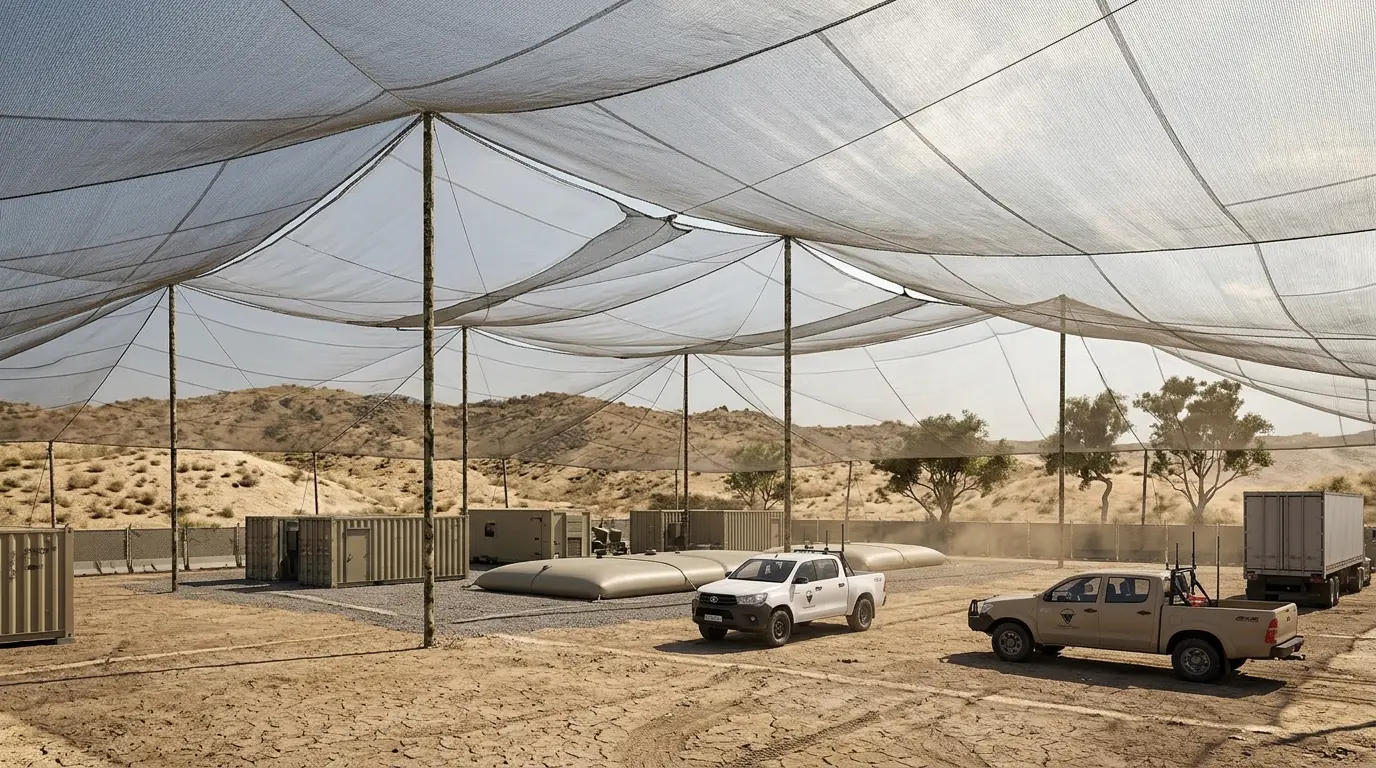

Remote Compounds & Temporary Sites
Real-world Need: Rapid overhead canopies and perimeter screens for temporary facilities, depots and shelters.
Utilizing high-strength Polyester or Specialized Nylon Nets. Available in large bespoke sizes for fast horizontal overhead rigging, providing 24/7 passive protection.

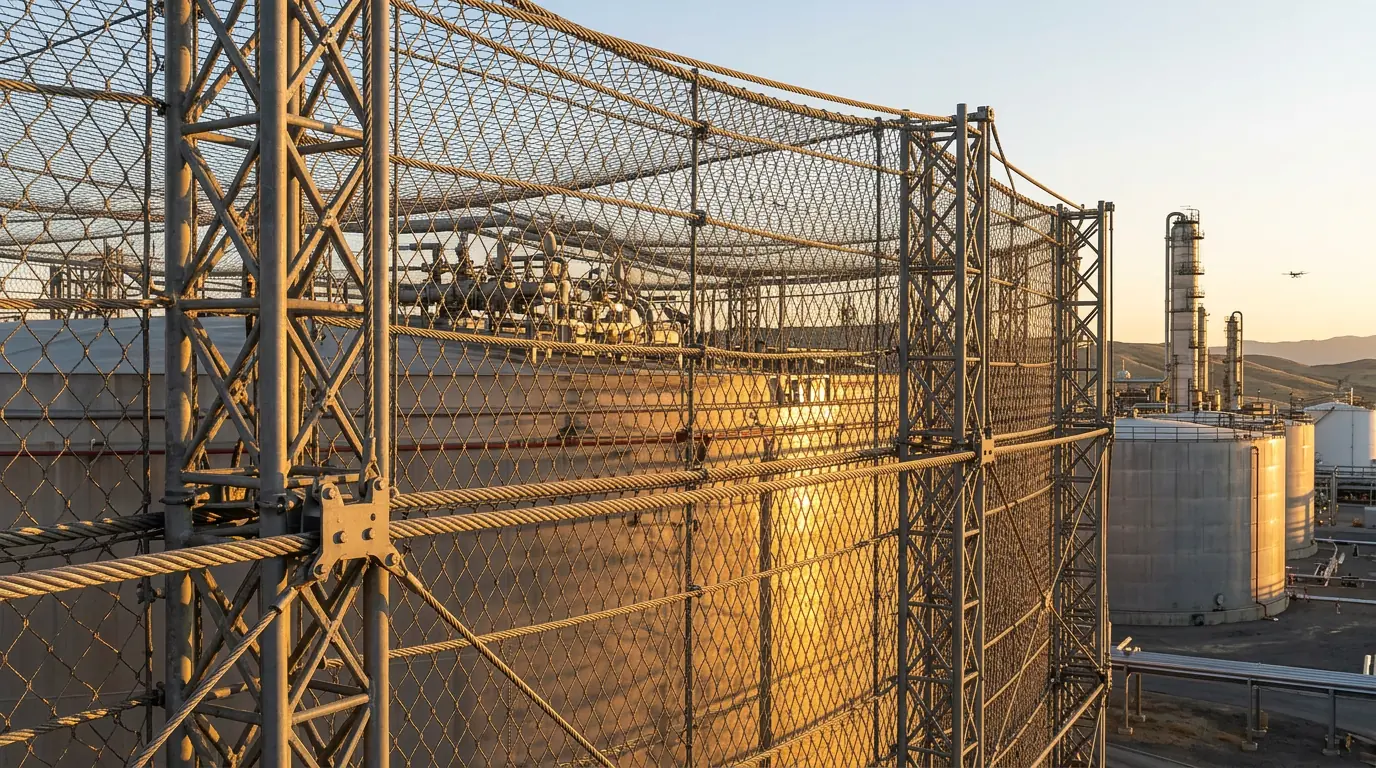

Energy Refineries & Strategic Storage
Real-world Need: Securing fuel depots and petrochemical storage tanks from unauthorized drone drops and localized threats.
Knotted rope net side screens and knotless top nets on a square steel frame at 3–5 m stand-off, in flame-retardant and UV-stabilized grades, with a steel net option for higher threat. Nets reduce the risk of direct impact; they do not provide blast or fire protection.

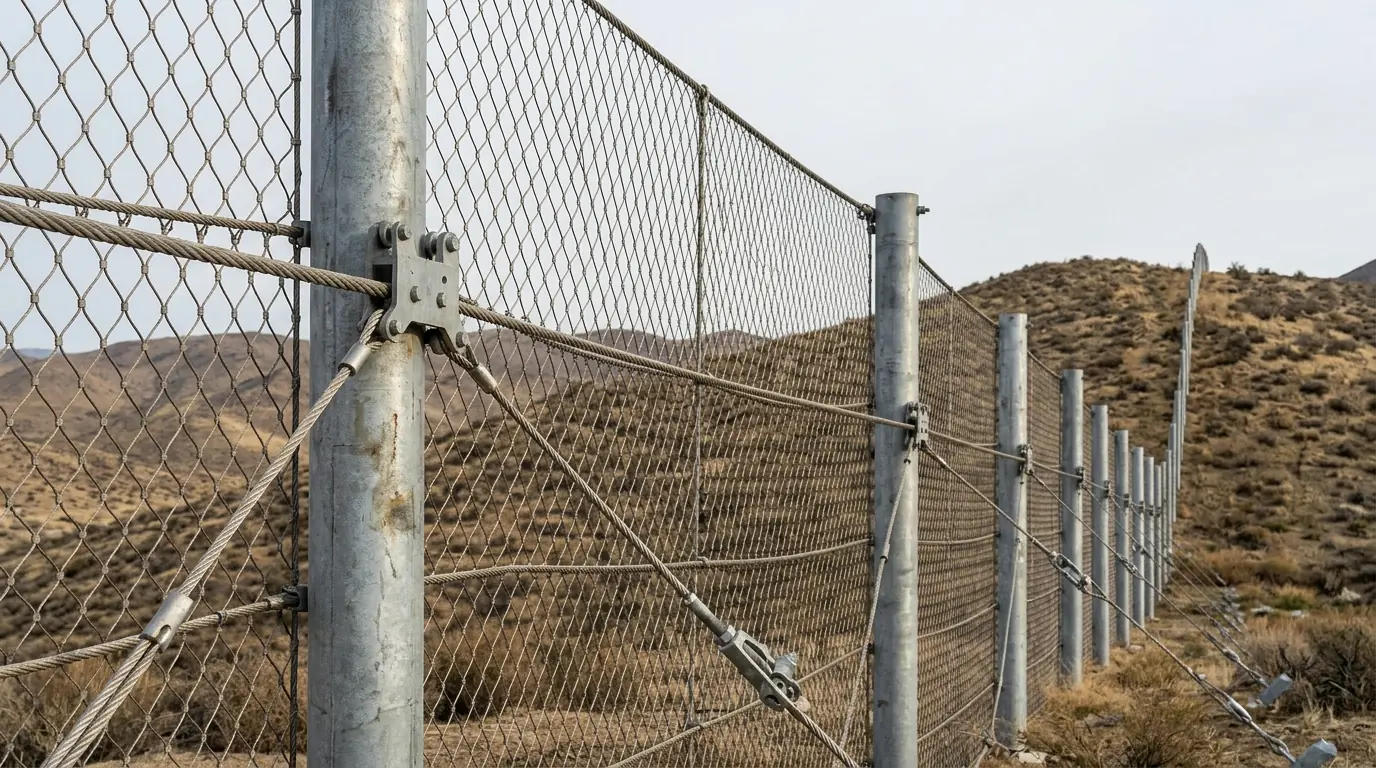

Long Perimeters & Sensitive Zones
Real-world Need: Reducing low-altitude drone access along long perimeters and restricted properties.
Deploying vertical long-span Knotted or Knotless Wire Rope/Polymer barrier systems. Flexible to various terrain layouts, adding a continuous physical barrier that works alongside detection and electronic countermeasures.
More Applications by Sector
The same three product series are configured for a wide range of sites. Typical starting points:
| Sector | Typical assets | Typical configuration |
|---|---|---|
| Power & energy | Substations, transformers, battery energy storage (BESS), thermal and nuclear plant buildings, solar and wind sites | Overhead canopy in 20–30 m bays (Series 01); ring net system for heavier threats (Series 03) |
| Data centers & utilities | Cooling plant, generators, water treatment | Roof-level canopies and perimeter screens (Series 01) |
| Oil, gas & chemicals | Storage tanks, process units, loading racks | Knotted side nets and knotless top nets on steel frames; steel option for higher threat |
| Maritime & ports | Vessel bridges and decks, jetties, offshore modules | Marine-grade stainless rope nets on removable frames (Series 02) |
| Logistics & transport | Depots, warehouses, vehicle parks, access roads and supply routes | Overhead net corridors on posts and cables, quick-repair panels with lacing rope (Series 01) |
| Aviation & government | Airport perimeters, hangars, radar and communication sites, correctional facilities, embassies | Synthetic nets near RF equipment; perimeter screens and canopies |
| Public safety & events | Stadiums, stages, VIP areas, temporary restricted zones | Gray flame-retardant knotless nets on truss or poles (Series 01) |
| Drone testing | Flight cages, test ranges, indoor enclosures | Knotless PP, HDPE or nylon panels with sewn edge rope |
Technical Details & Manufacturing Strength
Typical values for project planning; project values are confirmed in the technical data sheet.
Technical Specifications
| Parameter | Specifications & Standard Values |
|---|---|
| Mesh Size | Standard and custom openings, selected per threat definition |
| Wire/Rope Diameter | Selected per project span and impact energy |
| Material Composition | Stainless steel, galvanized steel and synthetic fibre options |
| Weaving Type | High-Tensile Knotted / Low-Drag Knotless Options |
| Key Features | Flame-Retardant, UV Protection, marine-grade stainless options |
| Standard Dimensions | Standard panels and large custom rolls, sized per project |
| Color Availability | White, Black, Gray / olive; transparent on request |
40 Years of Heritage
Four decades of mesh, wire rope and netting manufacturing.
Mass Production
Automated synthetic net lines; express lead times for qualified projects.
12-Step Quality Control
In-line inspection with batch records.
Project-Specific Procurement & Logistics Framework
All parameters are set per project to match the site, the threat definition and applicable regulations.
MOQ Flexibility
No rigid commercial minimums. Production runs are planned against your project drawings and perimeter requirements.
Project-Based Quotation
Quotes are prepared per project from wire or twine diameter, mesh, material and total volume: standard nets typically within 24 hours, engineered systems within 7–10 working days.
Express Lead Times
Standard lead times depend on specification. Express production is available once production planning confirms capacity.
Shipping & Compliance
Incoterms FOB, CFR, CIF, FCA and DAP. All projects are subject to export-control and end-use screening; MAISHI supplies passive physical protection products only.
