Secure Airspace with Knotted Drone Safety Nets
Fixed-area overhead protection and temporary no-fly perimeters
✓ Knotted structure for robust mechanical strength
✓ Flexible deployment for temporary or semi-permanent zones
✓ Suitable for stadiums, factories, airports and more
Why Choose a Knotted Drone Safety Net Over Knotless Options?
While knotless designs are popular, a Knotted Drone Safety Net is often the preferred choice for high-velocity interception and heavy-duty industrial defense. The primary advantage of knotted netting lies in its structural integrity; each knot acts as a mechanical stop, preventing the mesh from ‘running’ or unravelling if a single strand is cut by a high-speed drone propeller.

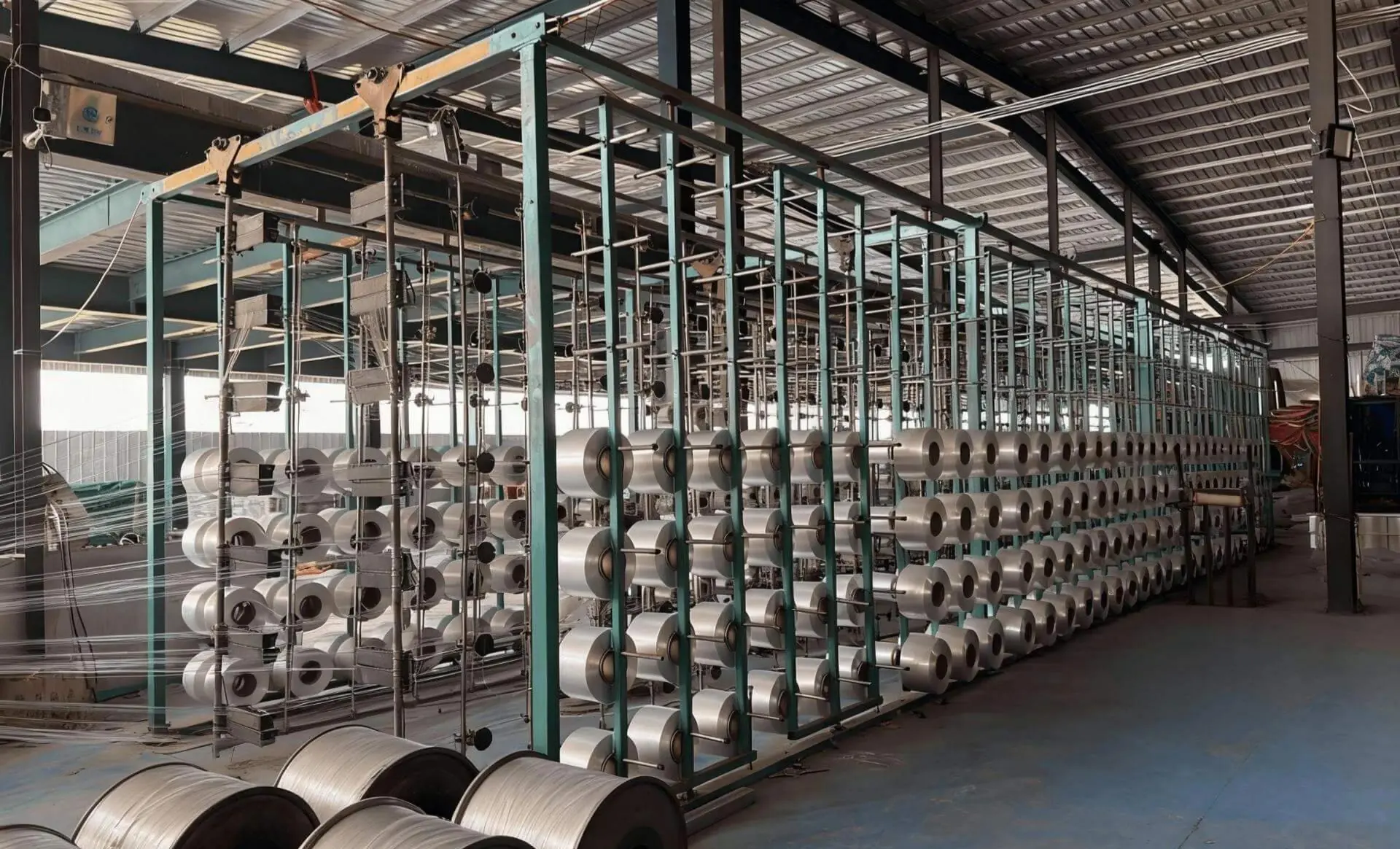

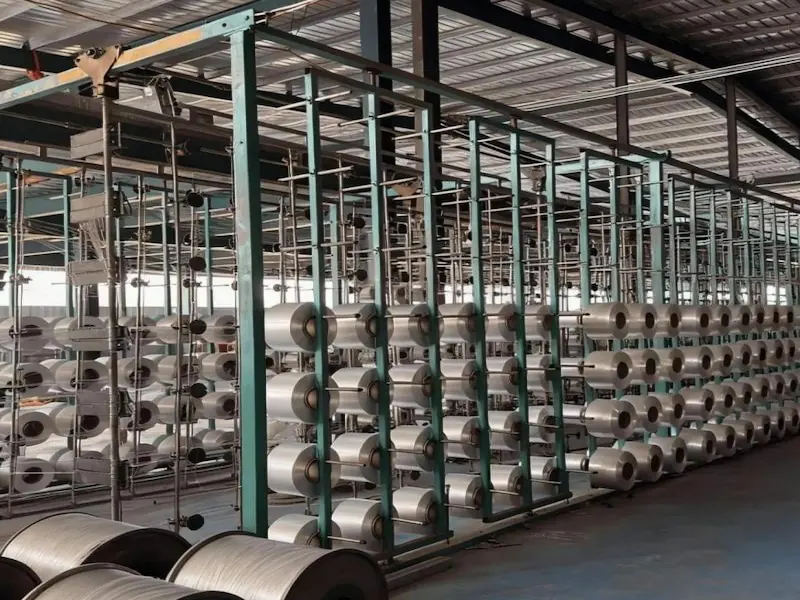

Our Knotted Drone Safety Net is manufactured using a specialized heat-setting process. This ensures that the knots remain tight under extreme tension, providing a consistent mesh size (from 20mm to 100mm) that won’t distort during impact. For large-scale perimeter security at airports or power plants, the superior tensile strength of our knotted drone netting offers a more cost-effective and durable solution for long-term outdoor deployment.
Technical Insight: Compared to Knotless Drone Netting, the knotted variant provides better tactile feedback for sensor-integrated systems and higher abrasion resistance in harsh environments.
Applications
01
Fixed-Area Overhead Protection
Prevent drones/falling objects over factory aisles, production areas, and equipment.
02
Temporary No Fly Zone Perimeters
Large-scale events, exhibitions, and temporary military exercise zones.
03
Stadium & Public Event Safety
Stadiums and concert venues, covering areas above stands and turf.
04
Sensitive Perimeter Security
High-risk sites such as airport perimeters, fuel depots, and chemical plants.
Advantages of our Knotted Drone Safety Net ★★★★★
The drone services provided were 24/7 Continuous Defense — All-weather physical protection, independent of electricity or software.
High Concealment & Environmental Adaptability— Optional colors/specifications for seamless environmental blending.
Absolute Reliability— High-safety-factor redundant design, resistant to fatigue over long-term use.
Flexible Deployment— Supports multiple installation methods: steel-cable tensioning, frame mounting, and suspension.
Technical Specs
| Parameter | Specification |
| Mesh Size | 30×30, 33×35, 45×45, 50×50, 100×100, 120×120, 150×150 mm |
| Rope Diameter | 1.5 – 5.0 mm |
| Material | Polyester / Nylon / Polypropylene (PP) |
| Weaving Type | Knoted |
| Color | White / Black / Gray |
| Border | Rope border or without border |
| Standard Dimensions | 5 m × 5 m, 10 m × 10 m, 5 m × 15 m, 8 m × 20 m |
| Special | Flame-retardant, UV protection, low-temperature resistance |
*All parameters can be customized according to specific mission requirements.
★★ System Design & Installation ★★
Step 1：Site survey (remote / on-site) – provide CAD drawings or on-site dimensions.
Step 2：Structural calculation & mesh planning – determine rope diameter and safety factor based on span, load, and wind pressure.
Step 3：Installation guidance & maintenance plan – provide node diagrams, installation videos, and recommended maintenance intervals.
Use Cases
01
UAV Defense Project for a Petrochemical Plant (Eastern Europe)
Secured a 15,000 $m^2$ high-risk production zone using customized, high-strength flame-retardant netting. This solution provides a robust physical interception barrier against unauthorized drone incursions, ensuring the operational safety of refining facilities.
02
Emergency Deployment of Temporary No-Fly Zone at a Middle Eastern Airport
Completed the rapid installation of protective netting around specific flight paths within 48 hours. This highly mobile solution effectively mitigated security risks during construction, ensuring zero interference with takeoff and landing schedules.。
03
Airspace Protection for Spectator Stands at International Sporting Events
Provided large-span, transparent “stealth” netting for temporary stadium seating. Without compromising the spectators’ view, this system creates a comprehensive “aerial fence” to prevent risks from drone crashes or unauthorized drops.
Request a Quote & Expert Consultation.
From standard specifications to complex custom fabrication, we deliver uncompromising quality. Share your project details or technical requirements below to consult directly with our mesh experts. We guarantee a tailored proposal within 24 hours.
